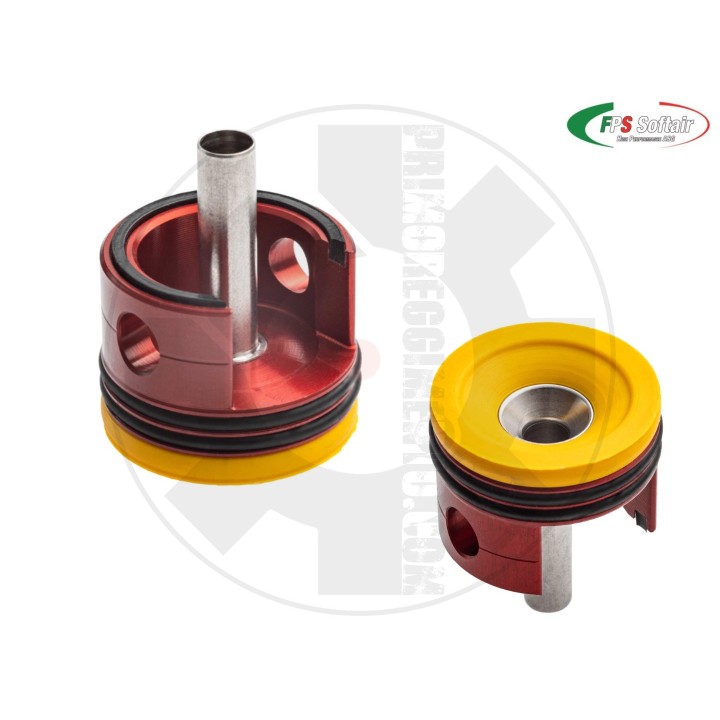

V2 Ergal Cylinder Head for Masada/SCAR/M60 60 Shore – FPS Softair

FPS Softair V2 Ergal cylinder head with long nozzle tube, two large sealing O-rings and Urepan bumper pads, designed for Masada, SCAR, M60, MK43 and ARX160. The yellow 60 Shore rubber is suited to custom DMR builds and to protecting more fragile gearboxes, while also reducing the noise of the replica.

Features and technical specifications

• Manufacturer: FPS Softair
• Manufacturer code: TC60C
• Type: V2 cylinder head with long nozzle tube
• Designed for: Masada, SCAR, M60, MK43, ARX160
• Compatibility: 100% Tokyo Marui standard
• Material: Ergal (aluminium alloy)
• Sealing: 2 large O-rings, suitable for cylinders with a large or a small bore
• Central tube: stainless steel, with small sealing O-ring
• Front bumper pad: high-density Urepan
• Rear bumper pad: Urepan, shaped to channel the air towards the outlet port
• Rubber hardness: 60 Shore
• Rubber colour: yellow
• Production: Made in Italy

How it works

The two large O-rings give an airtight seal on the cylinders on the market, with either a large or a small bore. The stainless steel central tube, with its small sealing O-ring, gives greater mechanical strength and less friction. The guide holes are sized and positioned so that the front bumper pad rests against the inner wall of the gearbox, for maximum cushioning and quiet operation. The shaped rear bumper pad channels the air towards the outlet port and reduces the noise of the firing cycle.

Fitting

It is a V2 head with a long nozzle tube, designed for Masada, SCAR, M60, MK43 and ARX160 replicas to the Tokyo Marui standard: the long nozzle tube sets it apart from standard V2 heads, so before buying it is worth checking that your replica is among those listed. The seal adapts to the cylinders on the market, with a large or a small bore, so it does not need a dedicated cylinder.

In the field

The yellow 60 Shore rubber makes this head suitable for custom DMR builds, for protecting notoriously fragile gearboxes and for anyone who wants to reduce the noise of the replica. Urepan resists abrasion, impacts, wear and high temperatures and withstands mineral oils, greases and various solvents, so it keeps its properties even in contact with the lubricants of the compression assembly. For all-round use, the same head is available with orange 70 Shore rubber.
